19″ 72V 35Ah 6000W Bike Full Parts Kit

Main Parameters:
Model: iEE Power E9 Plus Full Parts Complete Kit
Style: Stealth Bomber Type Electric Enduro Bike
Size: 19″ motorcycle wheel (KENDA motorcycle tire)
Color: Black, White

Electronics:
Motor: 72V 6000w QS brushless gearless hub motor with single gear, 72V 100A controller, support regenerative function, will charge battery during braking LCD display, full twist throttle drive, start with key
Battery: 72V 35Ah(2520Wh) 18650 EVE Grade-A cells li-ion battery with 84V 5A smart charger, rated for 1000 charge cycles
Charger: 84V 5 Amps smart charger, operates AC 100-240v 50/60Hz, 420W
Display: UKC1 colorful LCD with USB port, speed, distance, power supply display, etc.
Controller: 24 tubes 72v 100A Sabvoton sine wave programmable controller with bluetooth dongle
Throttle: Surron type high-grade twist throttle with right and left Pro Taper grips
Lights: Front light, rear light, turn signal light and brake light

Components:
Frame: Super stealth bomber steel frame: t/2 mm(black or white color)
Rims/Tires: 19″ double-wall al alloy rim with KENDA motorcycle tires, inner tube and nylon protective belt, 10g spokes
Hub: QUANTA barrel shaft hub
Handlebar: PROMAX riser handlebar bold type, 31.8 680mm, aluminum alloy
Stem: ZOOM strengthening bold vertical double stem(80mm), aluminium alloy
Seatpost: PROMAX (27.2mm), aluminium alloy
Seat Tube Clipper: PROMAX 31.8mm aluminium alloy
Bearing Bottom Bracket: NECO 68*127

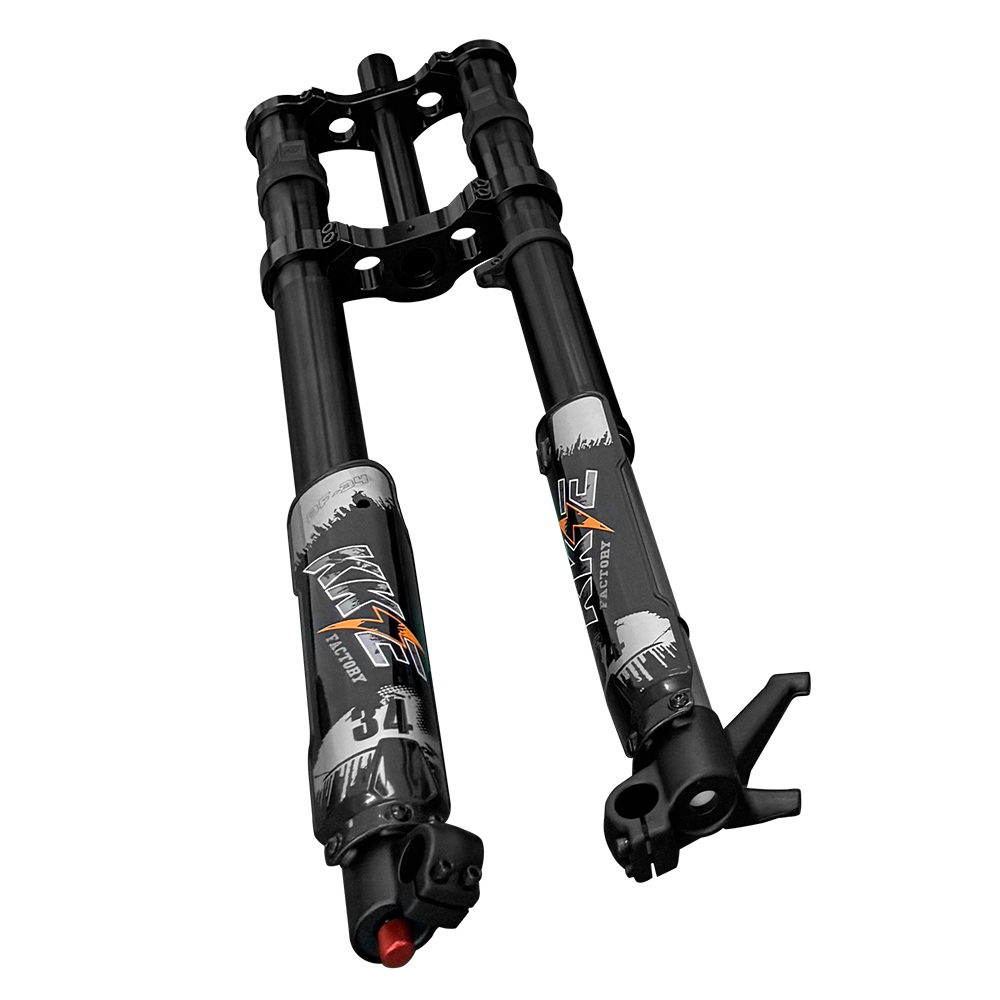

Front Fork: KKE double air crown fork with rebound and compression adjustment, forging process crown clamp, 19inch motorcycle wheel, 750mm length, 203mm dual disc, 20mm hub width, 110mm dropout
Rear Shock: KKE BR27-RC air shock
Brake system: TEKTRO HD-E740 4-Piston modified hydraulic disc brake(power cut off) aluminum alloy 203mm rotor disc brake caliper adapter with TEKTRO 203mm front & rear disc brake rotors
Shifter: Single speed Shimano TX-50 thumb shifter
Freewheel: 16T single speed gear
Derailleur: Single speed Shimano Acera
Chain/Crankset: Z51 38T teeth 128 crank, aluminium alloy
Tensioner: TAIWAN tensioner
Saddle & grips: SR ergonomic soft comfortable, PU leather
Pedals: CNC high density bearing 2 Peilin chrome molybdenum steel shaft pedal , aluminum alloy

Performance:
Speed: 90+km/h(55mph) Max. speed
Range: 35+ Miles
Charging Time: 6-8 hours, depend on the battery status
Bike Weight: 190lbs
Max. Load Capacity: 450lbs
Recommended Rider Heights: 5’4″ – 6’2″

Packing:

1). Stealth bomber electric enduro bike frame with bearing bottom bracket, mid-axle and headset with necessary bolts and screws
L*W*H: 76cm*53cm*22cm
G.W.: 22.3kg

2). QS 205 V3 72v 6000w motor laced on 19inch motorcycle rear wheel with KENDA motorcycle tire and inner tube
L*W*H: 65cm*65cm*26cm
G.W.: 21.8kg

3). 19inch Front Wheel Carton
L*W*H: 65cm*65cm*23cm
G.W.: 16.8kg
Including the following parts:
1. 19inch motorcycle front wheel with KENDA motorcycle tire and inner tube
2. 72v 100a Sabvoton sine wave programmable controller with bluetooth dongle
3. UKC1 colorful LCD display
4. Surron type high-grade twist throttle with right and left Pro Taper grips
5. 12 magnets pedal assist
6. Headlight with bracket and screws
7. Taillight with bracket and screws
8. 84V 5A smart charger
9. Alarm, switch, horn, key start button, voltage-reduction device, U-type flasher and light system cable
10. Crankset with screws, pedal, tensioner, 16T single gear freewheel, chain, stem, seat tube Clipper
11. 2 pieces of Tektro 203mm brake disc pads
12. Saddle

4). Suspension Carton
L*W*H: 90cm*28cm*14cm
G.W.: 9.7kg
Including the following parts:
1. KKE double air crown fork
2. KKE rear shock
3. Tektro HD-E740 4-piston hydraulic disc brake system front and rear with power cut off sensors
4. Handlebar
5. Kickstand
6. Screws for installation of motor, front fork and rear shock
7. Seatpost

5). 72V 35Ah lithium battery with Anderson butt connector
L*W*H: 42cm*27cm*21cm
G.W.: 14.5kg

6). Motorcycle seat(Optional choice)
L*W*H: 54cm*21cm*19cm
G.W.: 3.9kg

There are 5 packages as shown above to be sent out when the customer make order of this model. The outlook of the assembled enduro bike is the same as the following picture.

Higher level parts, much cheaper price!
You are worth it, after all.

Please leave us correct and exactly consignee, phone number and shipping address, so that we can send you the parcel in a right way. Thanks!

Brand introduction
iEE Power Co Limited located in Changzhou, Jiangsu—near Port of Shanghai. Since founded in 2013, adhere “Business is a win-win situation.” as core values to provide professional technology support, good quality products, competitive prices, short time of delivery and good after-sales services.
