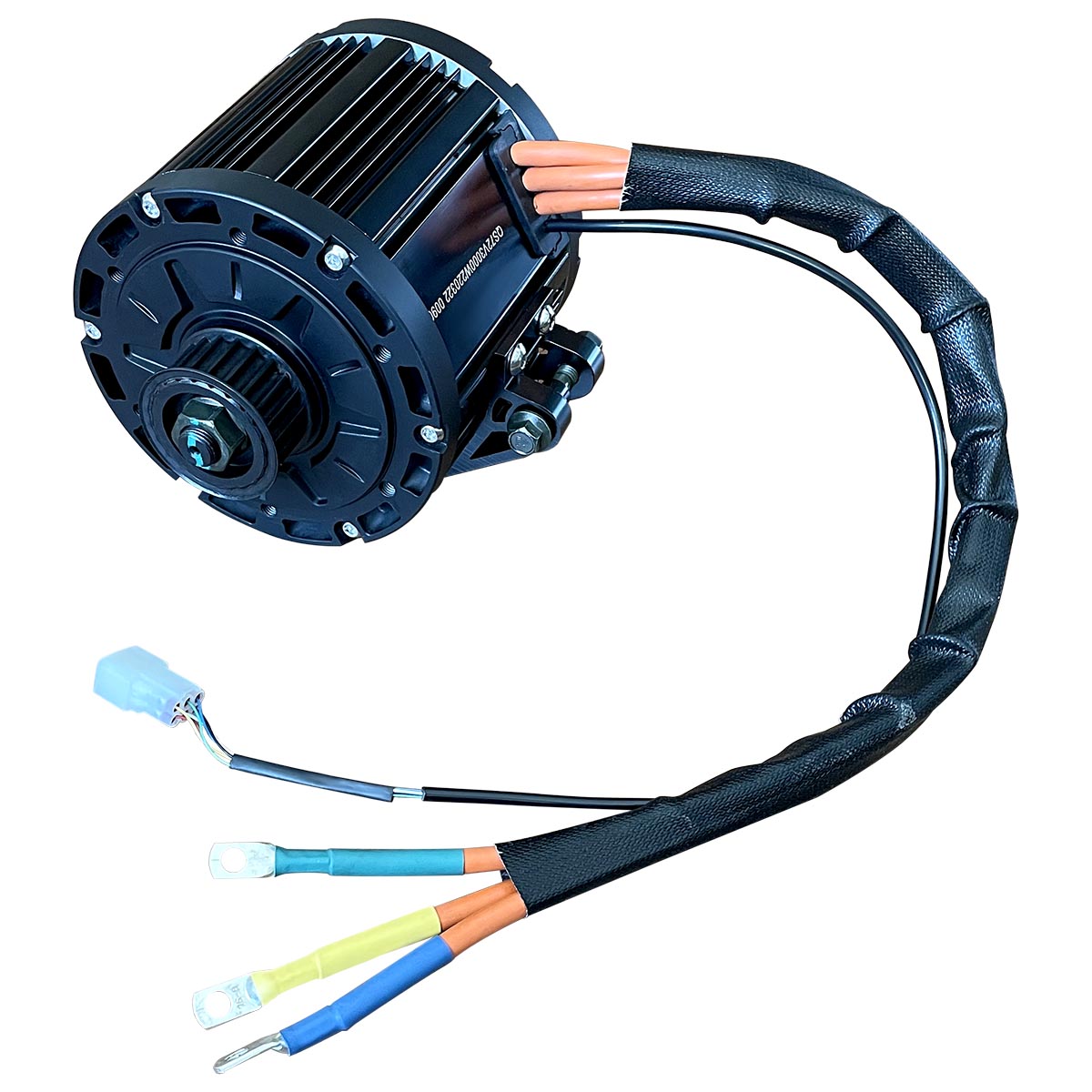

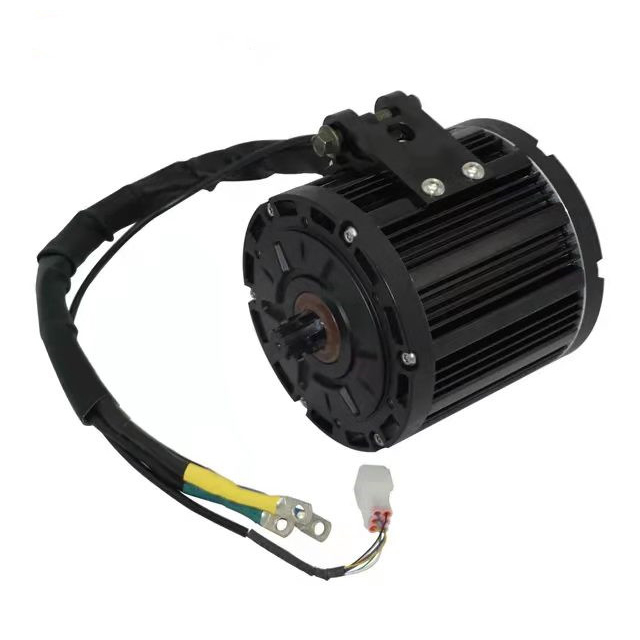

QS138 70H 48-84V 3000W Mid Drive Motor

QS138 70H 48-84V 3000W mid drive motor used for electric light motorcycle get to 72V 100KPH with a pretty good quality and powerful performance.

Key Features:
1) Light weight and small dimension compare to hub motor
2) High performance benefit from flux weakening
3) High efficiency during climbing, and better acceleration
4) Support regenerative braking

Specifications:
Motor Type: PMSM permanent magnet brushless mid motor
Motor Design: Single axle
Matched Tire: 12inch wheel and tire (as default)
Magnet Height: 70mm, 5 pole pairs
Dimension: Φ162x210mm
Rated Power: 3000W
Peak Power: 10000W
Rated Voltage: 48-84V DC universal voltage (72V is the best)
Speed: 3800RPM (basic RPM)
Flux Weakening: 6000RPM
Max Torque: 60N.m
Cooling Method: Air cooling
Max. Efficiency: 88-94%
Continuous Battery Current: 67A (72V)
Peak Battery Current: 150A (72V)
Thermic Probe: KTY83/122
Insulation Grade: F
Working Temperature: 70-120°C, Max. 150°C
Hall Sensor: Single hall set with waterproof connectors
Phase Wire: 30mm² cross section (not include insulation layer)
Waterproof Grade: IP67
Color: Black
Net Weight / Gross Weight: 11.5kgs / 12.45kgs
Packing Carton Size: 34x34x33cm

Packing Items:
QS138 70H 48-84V 3000W Mid Drive Motor with sprocket design
