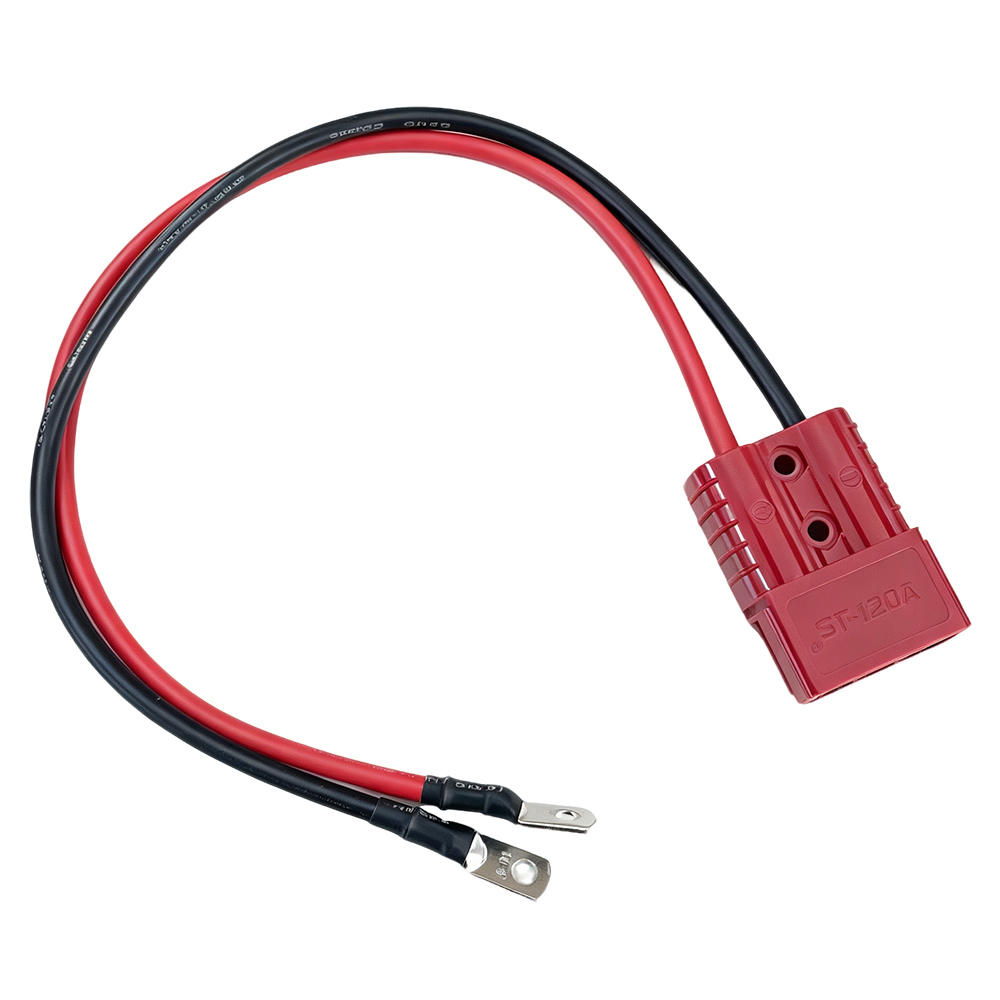

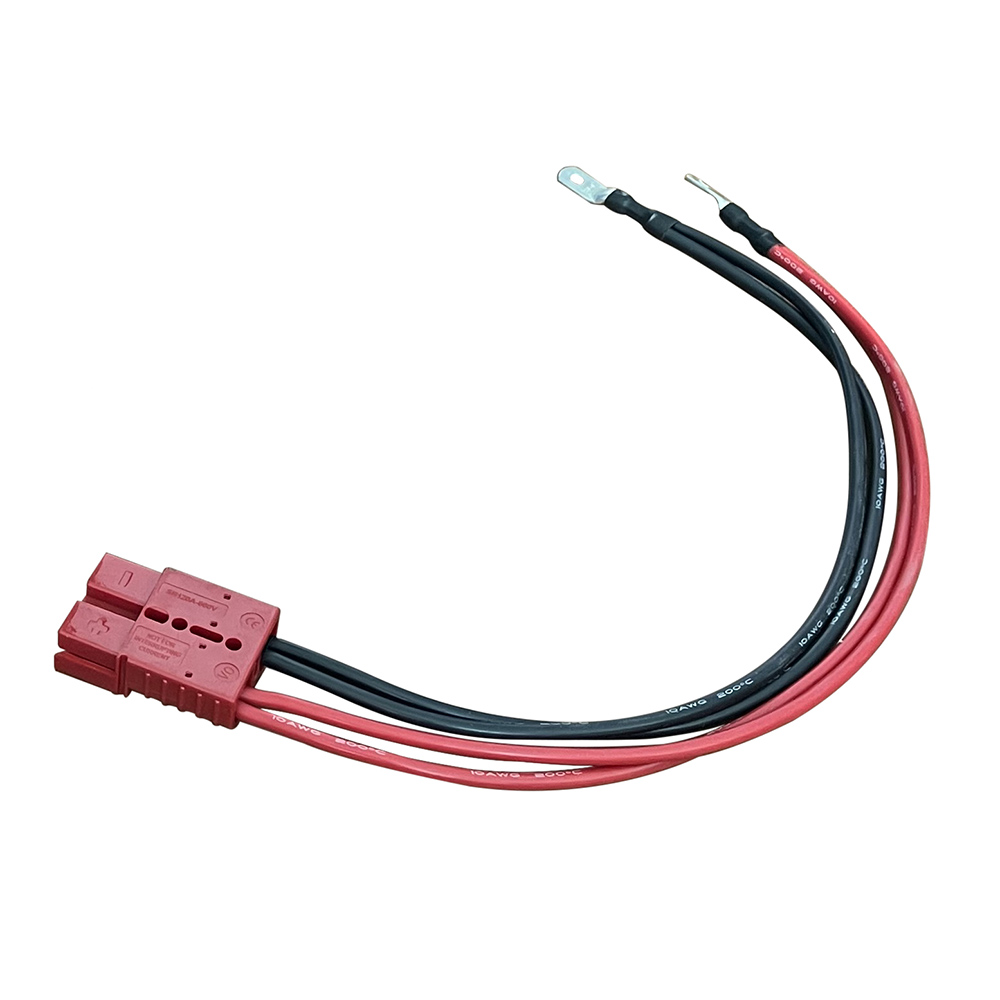

Pre-wired Anderson SB120 Connector with Dual 10 AWG High Temperature Silicone Wire

Product Overview
This heavy-duty Anderson SB120 connector comes fully pre-wired with dual parallel 10 AWG high-temperature silicone wires. Different from single-wire connectors, the dual 10AWG parallel design greatly increases total conductive area, improves current carrying capacity, and effectively reduces heat during high-load operation. Rated 120A continuous current and 600V DC, this SB120 plug is the perfect upgrade solution for 8000W–12000W high-power ebike kits, lithium battery packs, and heavy-duty controller power connections.

Key Specifications
1. Model: Anderson SB120 / ST120 compatible
2. Rated Current: 120A Continuous DC
3. Rated Voltage: 600V DC
4. Wire Spec: Dual parallel 10 AWG silicone wire
5. Wire Temperature Resistance: 200°C high temperature resistant
6. Design: Double wire parallel conduction for higher current output
7. Application: High-power e-bikes and e-motorcycles, battery pack, controller, energy storage system

Product Features
1. Dual 10AWG Parallel Design: Two 10AWG wires work in parallel to provide larger conductive area, stronger overcurrent capability, and much lower heating than single 8AWG wire, perfectly matching 120A high-current demand.
2. Factory Pre-crimped: Terminals are professionally crimped, tight and stable, no loose contact or sparking under full load.
3. High-temperature Silicone Wire: Flexible, anti-aging, oil-resistant and bend-resistant, suitable for long-term outdoor and vehicle vibration environments.
4. Secure Locking Structure: Precise buckle design ensures firm insertion and prevents power failure caused by loose plug.
5. High-power Compatibility: Ideal for 72V/84V/96V high-power electric bike kits, replacing traditional small-current SB50 connectors for safer heavy-load operation.

Application Scenarios
Widely used for high-power hub motor kits, mid-drive systems, large-capacity lithium battery packs, and heavy-duty controller main power lines. The dual 10AWG parallel structure ensures stable and safe power output even under peak acceleration and full-load operation.

Warm Reminder
Red Anderson SB120 plug only interlocks with red SB120 connectors. It is physically incompatible with grey/blue/green SB120 variants, they cannot be plugged together.
