This 12000~16000W rear hub motor wheel fits electric motorcycles, fat tire e-bikes, enduro & dirt e-bikes, featuring premium build quality and explosive power output.
Designed for rear-wheel drive and fully compatible with disc brake setups, this QS275 V3 WP8000 50H motor provides rated power of 12000–16000W and peak torque up to 220N·m. Paired with a 16T single-speed freewheel structure, it greatly improves riding smoothness. Ideal for dirt bikes, enduro buggies and e-motorcycles, finished in your choice of black or silver.
Main Features:
1. Motor Type: BLDC Hub Motor with Permanent Magnets
2. Motor design: Spoke Motor with Double axle out
3. Spoke Hole: 36pcs*4.2mm
4. Matching Wheel: 19inch spoke wheel
5. Magnet Height: 50MM
6. Pole Pairs: 16 pairs(32PCS Curved Mangets)
7. Rated Power: 12000-16000W
8. Max Power: 12000-16000W
9. Rated Voltage: 72V( 72-144V Can be optional)
10. Speed: 120km/h (30-140km/h can be customized)
11. Max No-load RPM:1400RPM
12. Max Torque: 200N.M
13. Max Efficiency: 90%
14. Continuous current: 150A
15. Max current:250A ,Peak 350A
16. Brake type: Disc brake
17. Rear Fork width for installation: 200mm
18. Winding Core material: Aluminium
19. Cross Section of Phase wire: 16 mm2
20. Hall sensor phasing angle: 120 degree
21. Temperature Sensor: Optional
22. Max. Working Temperature: 70 degree, Peak 120 degree
23. Waterproof Grade: IP54
24. N.W. / G.W. : 28kgs / 32kgs
25. Package Size: 65*65*30CM
Packing Items:

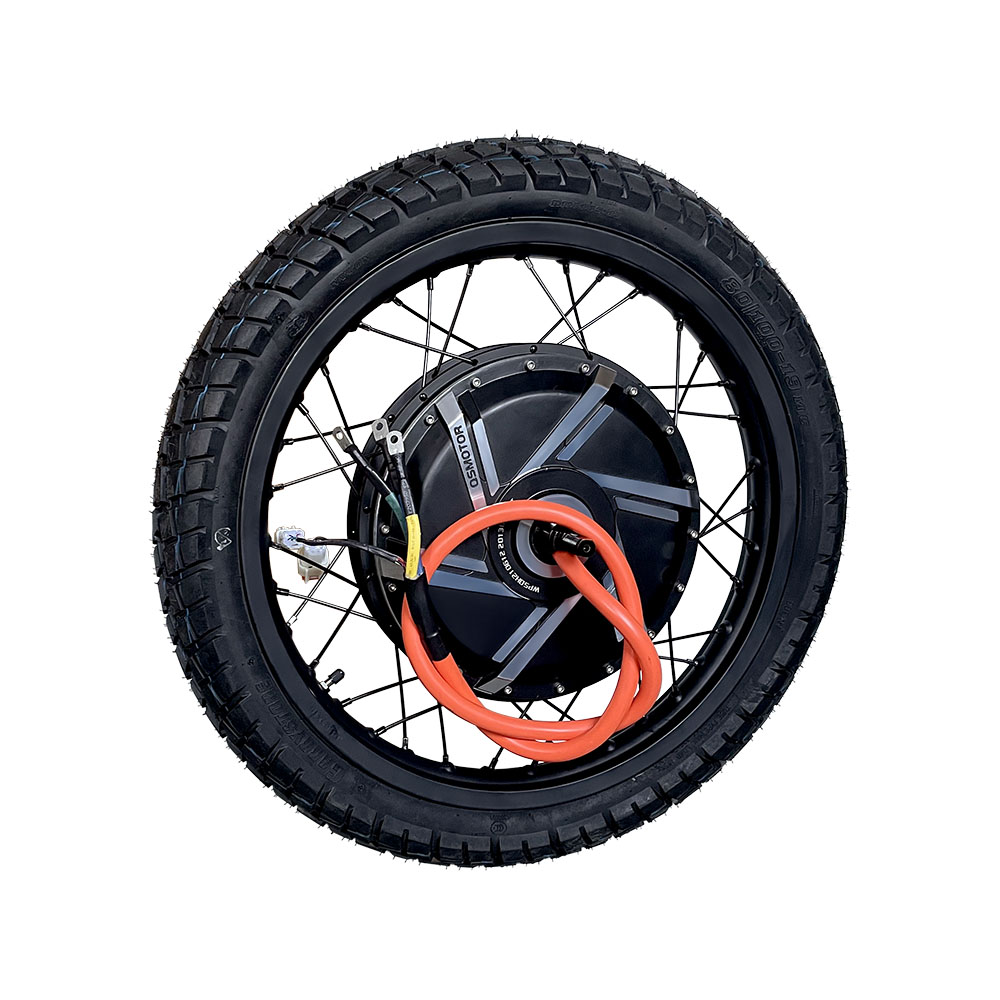

72V 12000-16000W QS275 V3 WP8000 50H magnets rear hub motor laced on 19″ motorcycle rim with tire and inner tube
Note: iEE Power provides custom solutions and made-to-order products based on your specific size, voltage, power, and usage requirements. Custom products require a certain production lead time(15-20 days).
Please leave us correct and exactly consignee, phone number and shipping address, so that we can send you the parcel in a right way. Thanks!
